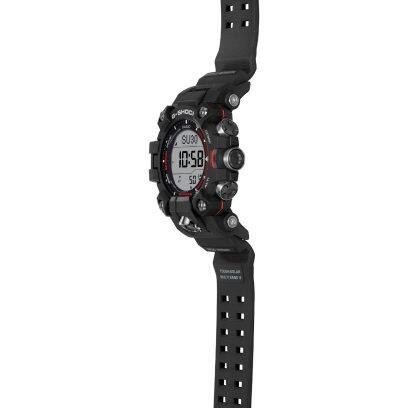

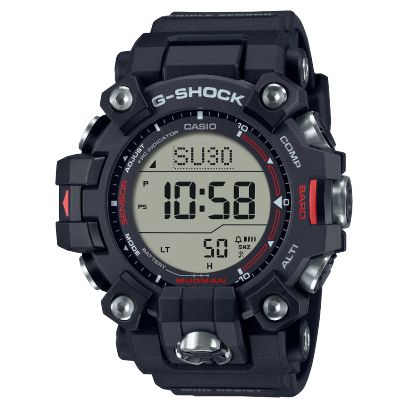

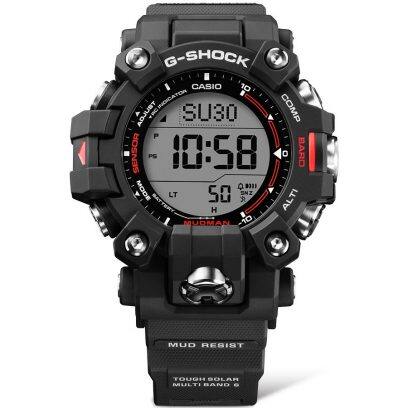

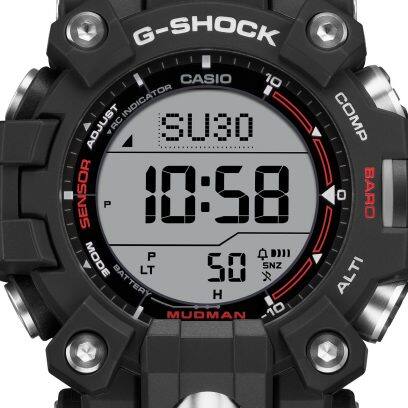

Conquer even more terrain with enhanced support — A rugged timepiece in a bold, powerful, triple-sensor design. The G-SHOCK Master of G line of watches developed for professionals working in the harshest environments introduces the triple-sensor MUDMAN with mud-resist construction. The large, easy to operate front button and three direct sensor buttons on the side are shaped to drain mud and water and are protected by cylinder-shaped stainless steel components. The button shafts are equipped with gasket fittings to keep mud and dust out, as well, so you’re ready to take on the toughest of terrains. The bold design features a dual-layer LCD, as well as the Triple Sensor to deliver altitude, direction, temperature and barometric pressure readings directly to your wrist. The thin module and Carbon Core Guard structure mean all these features live in a slimmer, more compact watch, for tough and rugged support with a comfortable fit. Slim, yet powerful, this MUDMAN design packs full-on functionality in a striking exterior built with an intricate combination of components. The digital compass is more practical than ever thanks to the dual-layer LCD, which displays compass graphics on the top layer and time and other readings on the layer below. The GW-9500-3 and GW-9500-1A4 feature a negative dual-layer LCD. Taking utility to a whole new level, radio-controlled solar power delivers precision timekeeping powered by light, while Super Illuminator ensures visibility, even in dark places. The case, bezel and urethane band are made with bio-based resins derived from renewable organic resources. The case back is engraved with the iconic MUDMAN mole character holding a compass.

Case size (L× W× H)

56.7 × 52.7 × 14.8 mm

Weight

81 g

Case and bezel material

Case / bezel material: Bio-based resin

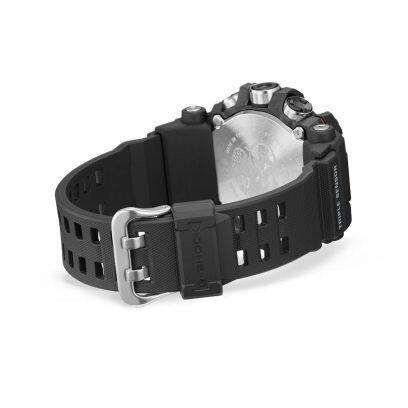

Band

Bio-based resin band

Construction

Shock Resistant

Mud Resistant

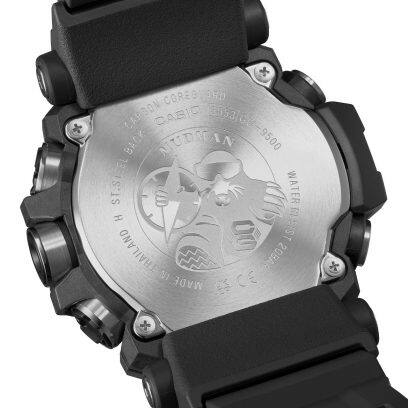

Carbon Core Guard structure

Water resistance

200-meter water resistance

Time adjustment

Radio-controlled Watch; Multi band 6

Power supply and battery life

Tough Solar (Solar powered)

Sensor feature

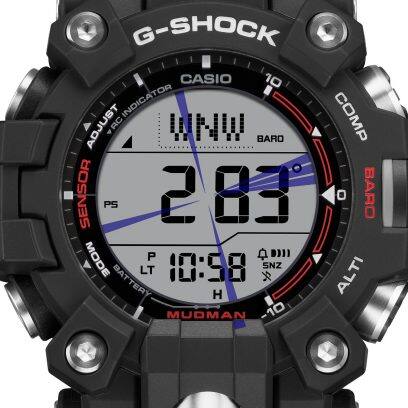

Digital compass Measures and displays direction as one of 16 points Measuring range: 0 to 359° Measuring unit: 1° 60 seconds continuous measurement Graphic direction pointer Bidirectional calibration Magnetic declination correction Bearing memory

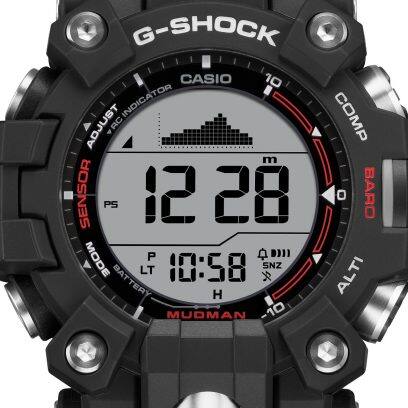

Altimeter Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.) Measuring unit: 1 m (5 ft.) Manual memory measurements (up to 30 records, each including altitude, date, time) Auto log data (High/low altitudes, auto cumulative ascent and descent) Trek log data (up to 14 records of high/low altitudes, auto cumulative ascent and descent of particular treks) Others: Relative altitude readings (-3,000 to 3,000 m), Selectable measurement interval: 5 seconds or 2 minutes *1 second for first 3 minutes only *Changeover between meters (m) and feet (ft)

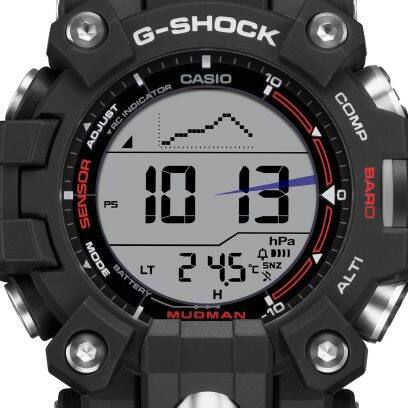

Barometer Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg) Display unit: 1 hPa (0.05 inHg) Atmospheric pressure tendency graph (Past 42 hours of readings) Atmospheric pressure differential graphic Barometric pressure tendency information alarm (beep and arrow indicate significant changes in pressure) *Changeover between hPa and inHg

Thermometer Display range: -10 to 60℃ (14 to 140℉) Display unit: 0.1℃ (0.2℉) *Changeover between Celsius (℃) and Fahrenheit (℉)

Glass

Mineral Glass

Compatible band size

145 to 215 mm

World time

World time 31 time zones (48 cities + coordinated universal time), daylight saving on/off

Sunrise/sunset display

Sunrise, sunset time display Sunrise time and sunset time for specific date

Stopwatch

1/10-second stopwatch Measuring capacity: 999:59'59.9'' Measuring modes: Elapsed time, split time, 1st-2nd place times

Timer

Countdown timer Measuring unit: 1 second Countdown start time setting range: 24 hours Countdown start time setting range: 1 minute to 24 hours (1- minute increments and 1-hour increments)

Alarm/hourly time signal

5 daily alarms (with 1 snooze alarm)

Hourly time signal

Light

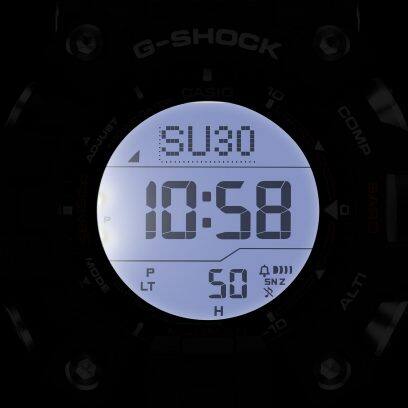

LED backlight (Super Illuminator) Full auto LED light, selectable illumination duration (1.5 seconds or 3 seconds), afterglow

Light color

LED:White

Calendar

Full auto-calendar (to year 2099)

Mute feature

Button operation tone on/off

Energy saving feature

Power Saving (Turns off the display when the watch is left in the dark)

Battery display/alert

Battery level indicator

Run time

Approx. battery operating time: 6 months on rechargeable battery (operation period with normal use without exposure to light after full charge) 26 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)

Accuracy

Accuracy: ±15 seconds per month (with no signal calibration)

Other features

12/24-hour format

Regular timekeeping: Hour, minute, second, pm, month, date, day

Duplex LC display

Time adjustment details

Time calibration signal reception Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal Manual receive The latest signal reception results

Time Calibration Signals Station name: DCF77 (Mainflingen, Germany) Frequency: 77.5 kHz Station name: MSF (Anthorn, England) Frequency: 60.0 kHz Station name: WWVB (Fort Collins, United States) Frequency: 60.0 kHz Station name: JJY (Fukushima, Fukuoka/Saga, Japan) Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga) Station name: BPC (Shangqiu City, Henan Province, China) Frequency: 68.5 kHz

Basic Information

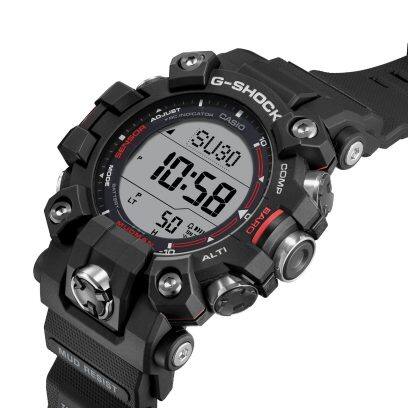

CASIO G-SHOCK MASTER OF G LAND MUDMAN MENS 200M - GW-9500-1A
